Polar Fields

The magnetic fields at the north and south pole of the Sun play a crucial role in shaping the structure of the coronal magnetic field. However, we only observe the magnetic field from the Sun-Earth line, and the magnetic fields at the poles remain poorly constrained.

For this prediction we refined our technique for handling polar magnetic fields. First we carefully estimate the average net magnetic flux at the poles by analyzing a special series of SDO/HMI observations. Then we fill the unobserved portions of the poles with a combination of positive and negative flux patches. Our filling algorithm is designed to match the average character of flux-elements near the pole and the net flux estimated for the whole area.


The images below compare a smooth extrapolation of the magnetic field towards the poles and the final filled map at high resolution. This filled map is used to create the magnetic boundary conditions, which is further smoothed to match the resolution of the simulation.

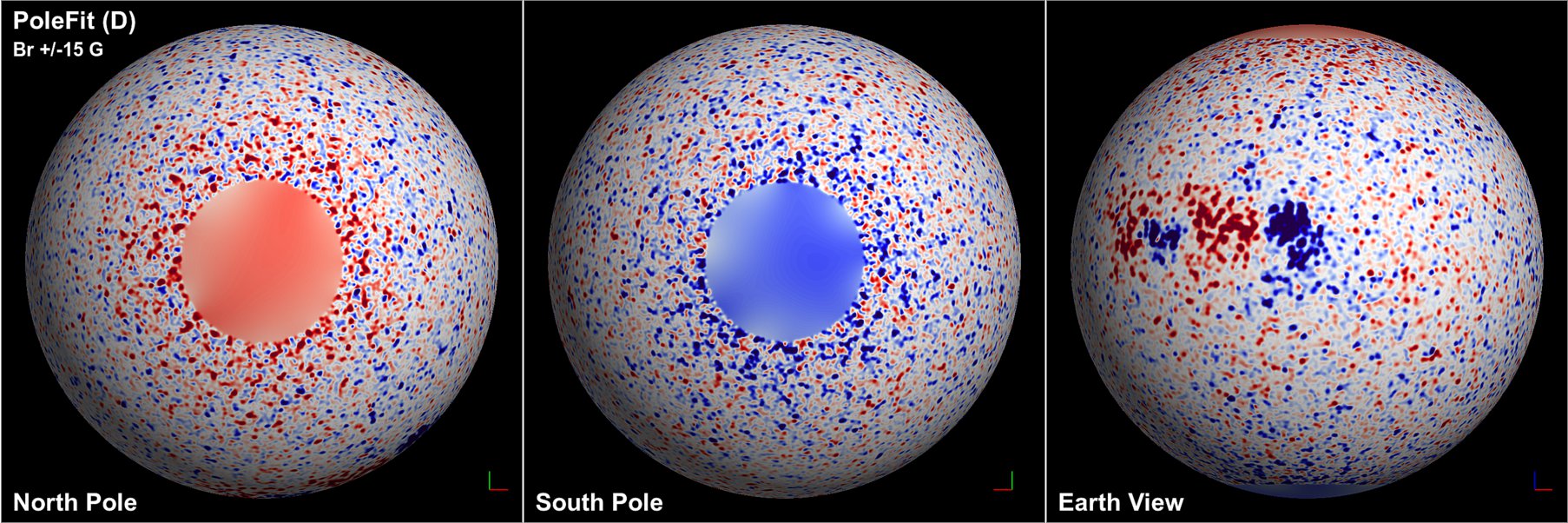

Smooth Pole Fit/Extrapolation

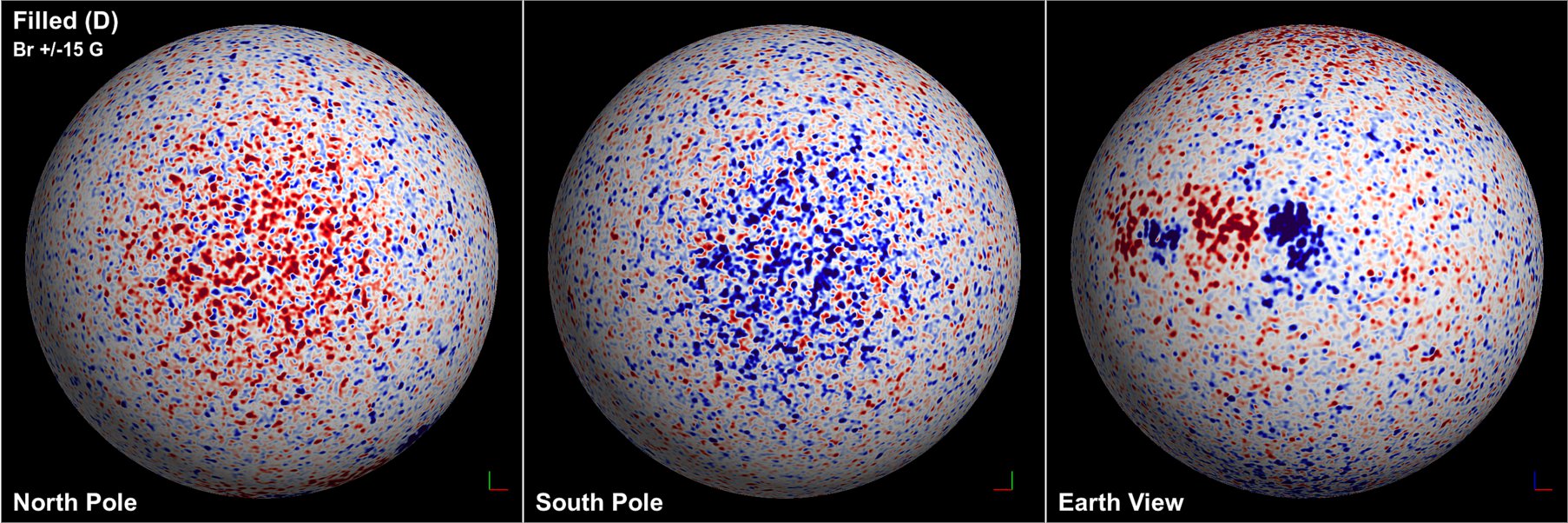

Final Map

Most interestingly, adding mixed polarities at the poles leads to additional structure and complexity in the magnetic field there. We can visualize this by zooming in on the squashing factor movie in the polar regions. Here we see sharp, ray-like features emerging from the mixed polarity regions at the poles, particularly within coronal holes (open magnetic field regions). These features are reminiscent of the plume or ray-like features typically observed at the poles during solar eclipses.


South Pole

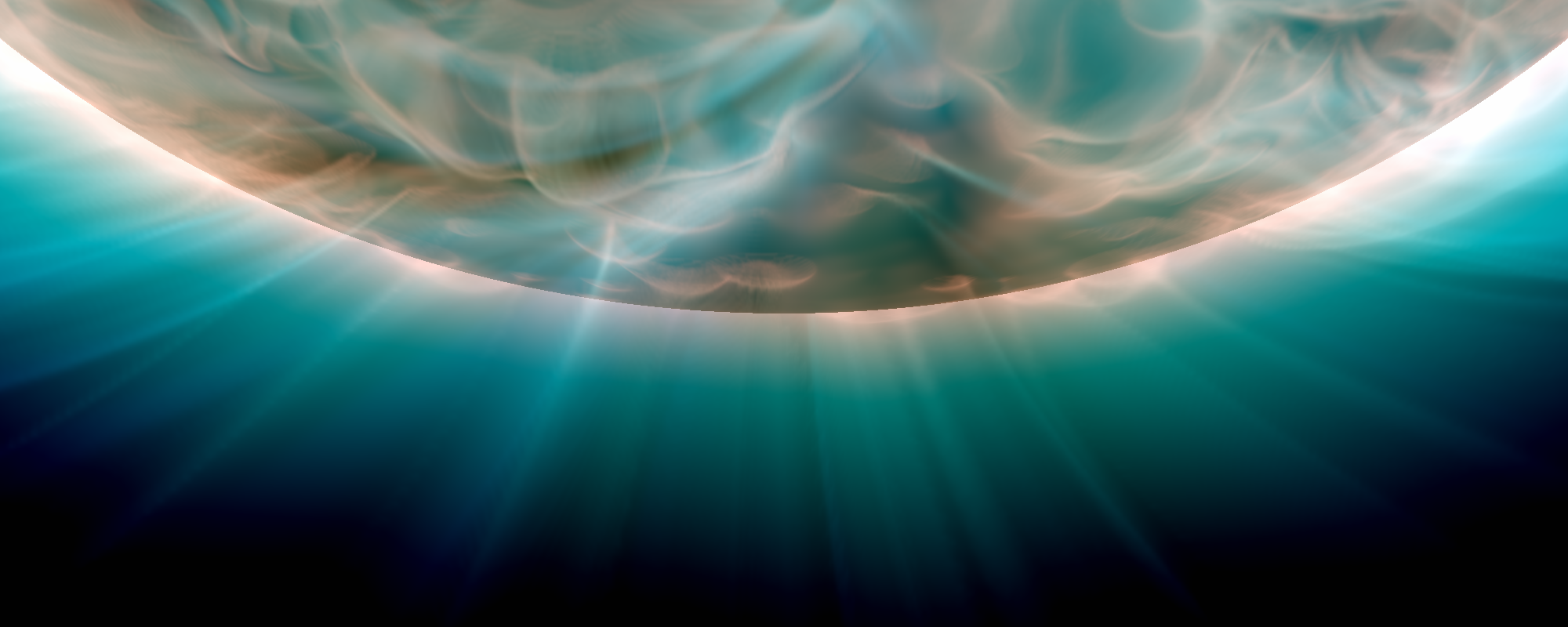

Eclipse Perspective (CML = 315.1)
South Pole (Rotated)

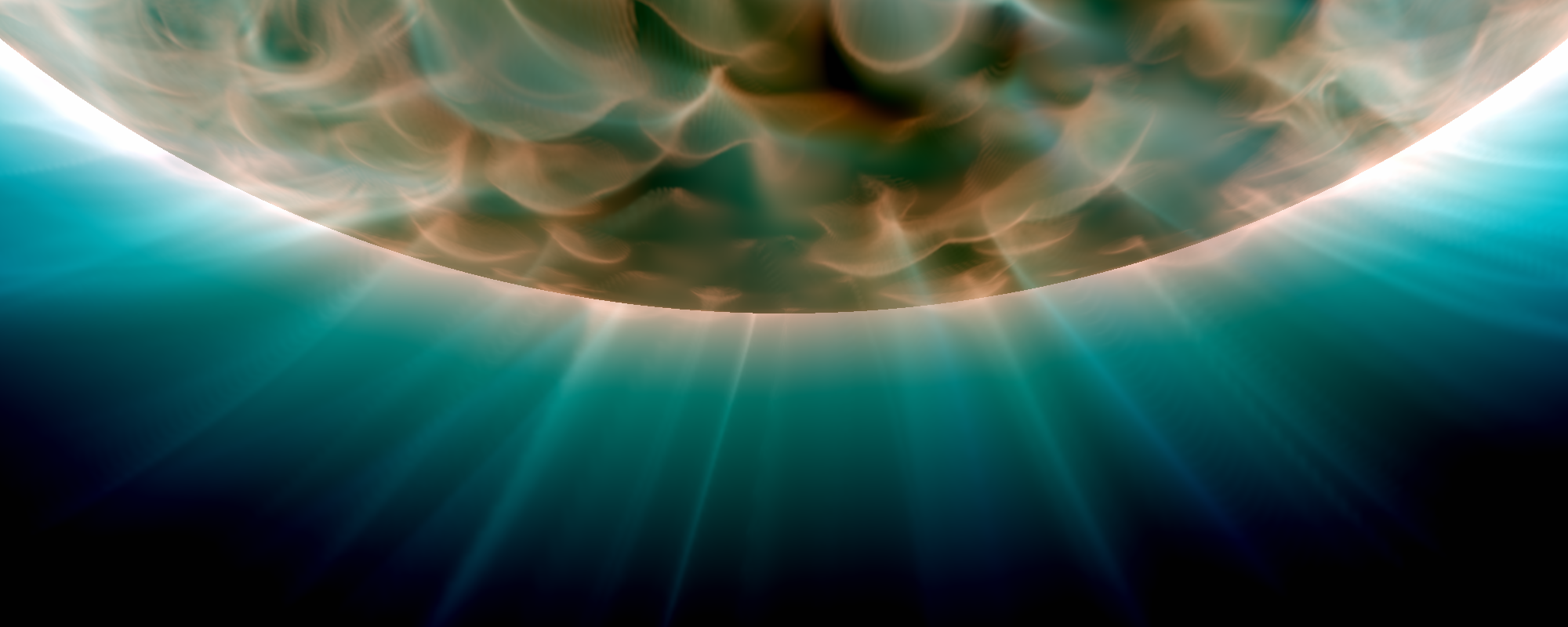

A Southern Coronal Hole (CML = 181.6)
North Pole

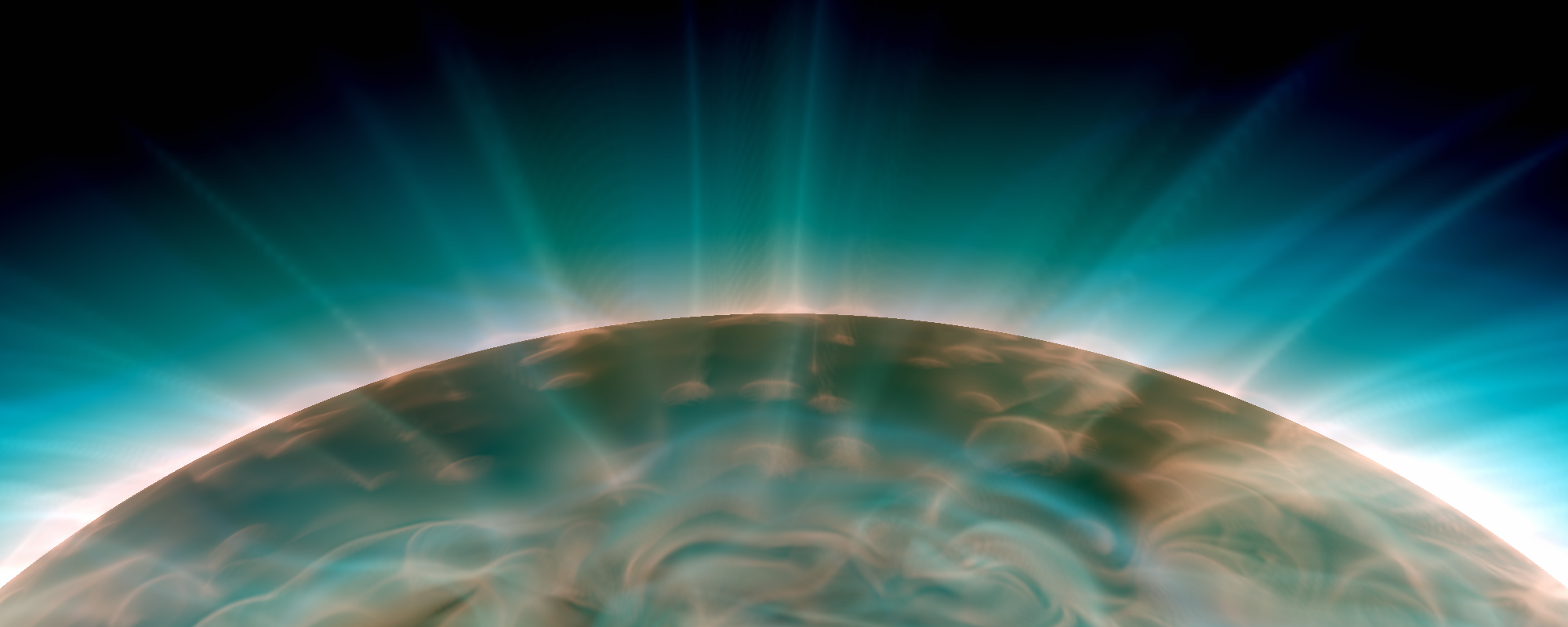

Eclipse Perspective (CML = 315.1)
North Pole (Rotated)

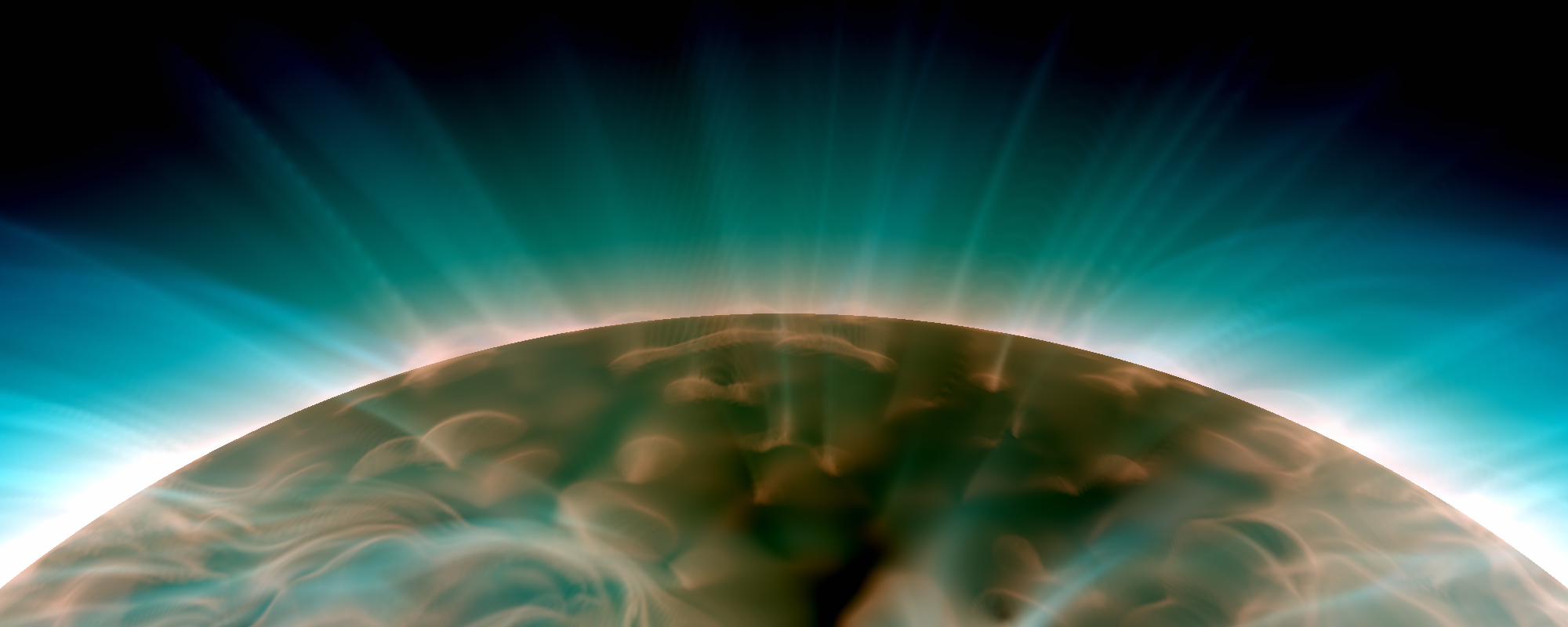

A Northern Coronal Hole (CML = 243.1)
