Plotting radial slices

This example shows how to plot slices of constant radial distance from a MAS model output.

First, load the required modules.

from psipy.model import MASOutput
import matplotlib.pyplot as plt

Next, load a set of MAS output files. You will need to change this line to point to a folder with MAS files in them.

mas_path = '/Users/dstansby/github/psipy/data/helio'
model = MASOutput(mas_path)

Each MAS model contains a number of variables. The variable names can be accessed using the .variables attribute.

print(model.variables)

Out:

['p', 't', 'va', 'br', 'vp', 'jp', 'jr', 'bp', 'vr', 'bt', 'vt', 'rho', 'jt']

Set parameters for plotting. The first line will give us a horizontal errorbar underneath the plots. The second line is the index to select for the radial slice.

cbar_kwargs = {'orientation': 'horizontal'}
r_idx = 139

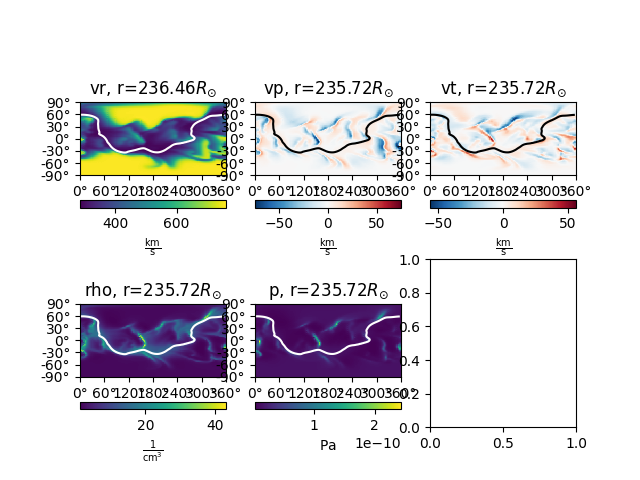

Plot the slices

fig, axs = plt.subplots(nrows=2, ncols=3)

ax = axs[0, 0]
model['vr'].plot_radial_cut(r_idx, ax=ax, cbar_kwargs=cbar_kwargs)
model['br'].contour_radial_cut(r_idx, levels=[0], ax=ax, colors='white')
ax = axs[0, 1]
model['vp'].plot_radial_cut(r_idx, ax=ax, cbar_kwargs=cbar_kwargs)
model['br'].contour_radial_cut(r_idx, levels=[0], ax=ax, colors='black')
ax = axs[0, 2]
model['vt'].plot_radial_cut(r_idx, ax=ax, cbar_kwargs=cbar_kwargs)
model['br'].contour_radial_cut(r_idx, levels=[0], ax=ax, colors='black')

ax = axs[1, 0]
model['rho'].plot_radial_cut(r_idx, ax=ax, cbar_kwargs=cbar_kwargs)
model['br'].contour_radial_cut(r_idx, levels=[0], ax=ax, colors='white')
ax = axs[1, 1]
model['p'].plot_radial_cut(r_idx, ax=ax, cbar_kwargs=cbar_kwargs)
model['br'].contour_radial_cut(r_idx, levels=[0], ax=ax, colors='white')

plt.show()
