add_point

Plot3d.add_point(r, t, p, data=None, /, dataid='Data', **kwargs)

Add a single point at spherical coordinates \((r, \theta, \phi)\).

Parameters:

r, t, pArrayLike

Point location.

dataArrayLike | None, optional

Scalar value at this point. Default is None (solid color).

dataidstr, optional

Name for the scalar array. Default is 'Data'.

**kwargs

Additional keyword arguments forwarded to add_mesh().

Returns:

outpyvista.Actor

The rendered point actor.

Raises:

ValueError

If any of r, t, p has size greater than 1.

See also

add_points()

For rendering point clouds from larger coordinate arrays.

Examples

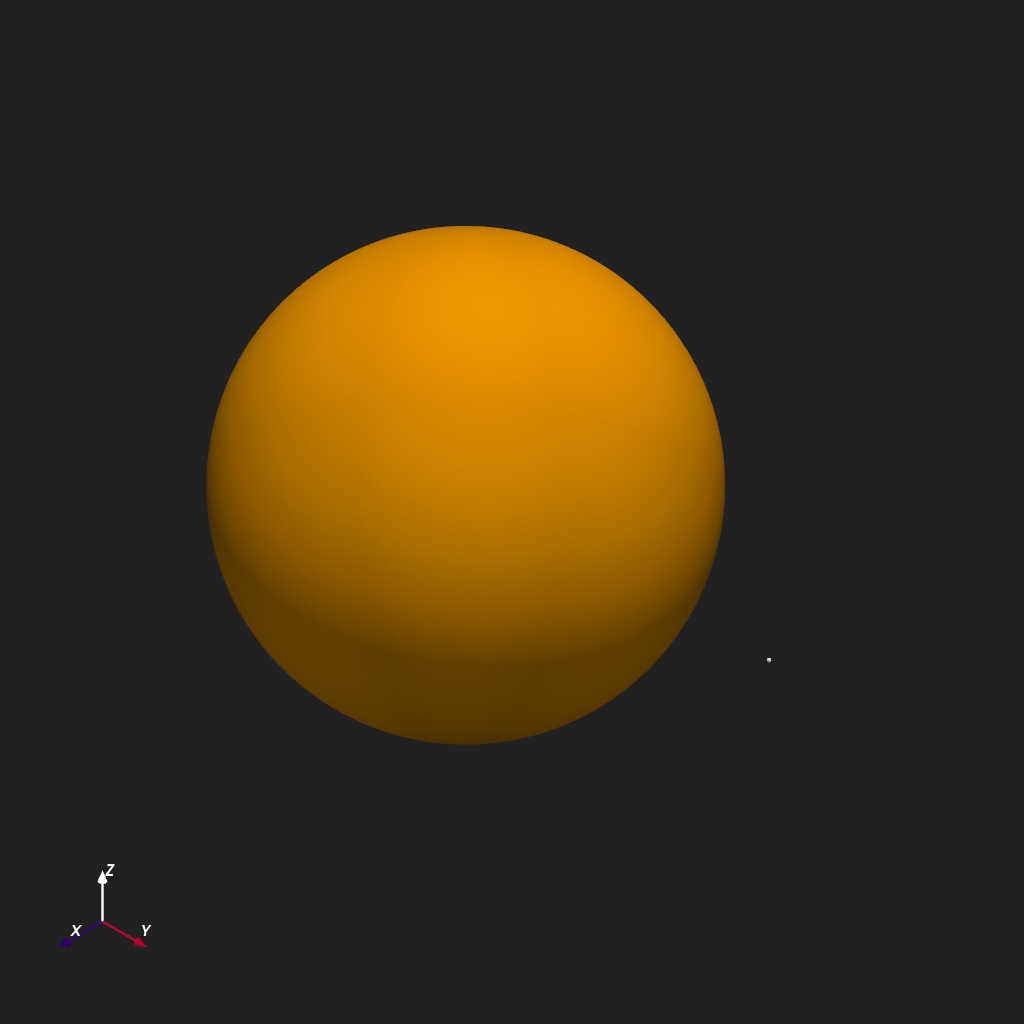

A single point at \(r = 1.5\,R_\odot\) on the equatorial plane (\(\theta = \pi/2\)) at 90° longitude (\(\phi = \pi/2\)).

>>> from pyvisual import Plot3d
>>> from math import pi
>>>
>>> plotter = Plot3d()
>>> plotter.add_sun()
>>> plotter.show_axes()
>>> plotter.add_point(1.5, pi/2, pi/2)
>>> plotter.show()

Static Scene

Interactive Scene
