add_spline

Plot3d.add_spline(r, t, p, data=None, /, dataid='Data', **kwargs)

Add a single spline (polyline) through spherical coordinate points.

Parameters:

r, t, pArrayLike

1-D coordinate arrays of identical length defining the spline path.

dataArrayLike | None, optional

Per-point scalar values. Default is None (solid color).

dataidstr, optional

Name for the scalar array. Default is 'Data'.

**kwargs

Additional keyword arguments forwarded to add_mesh().

Returns:

outpyvista.Actor

The rendered spline actor.

Raises:

ValueError

If r, t, or p is not 1-D.

See also

add_splines()

For rendering bundles of multiple splines from higher-dimensional coordinate arrays.

Examples

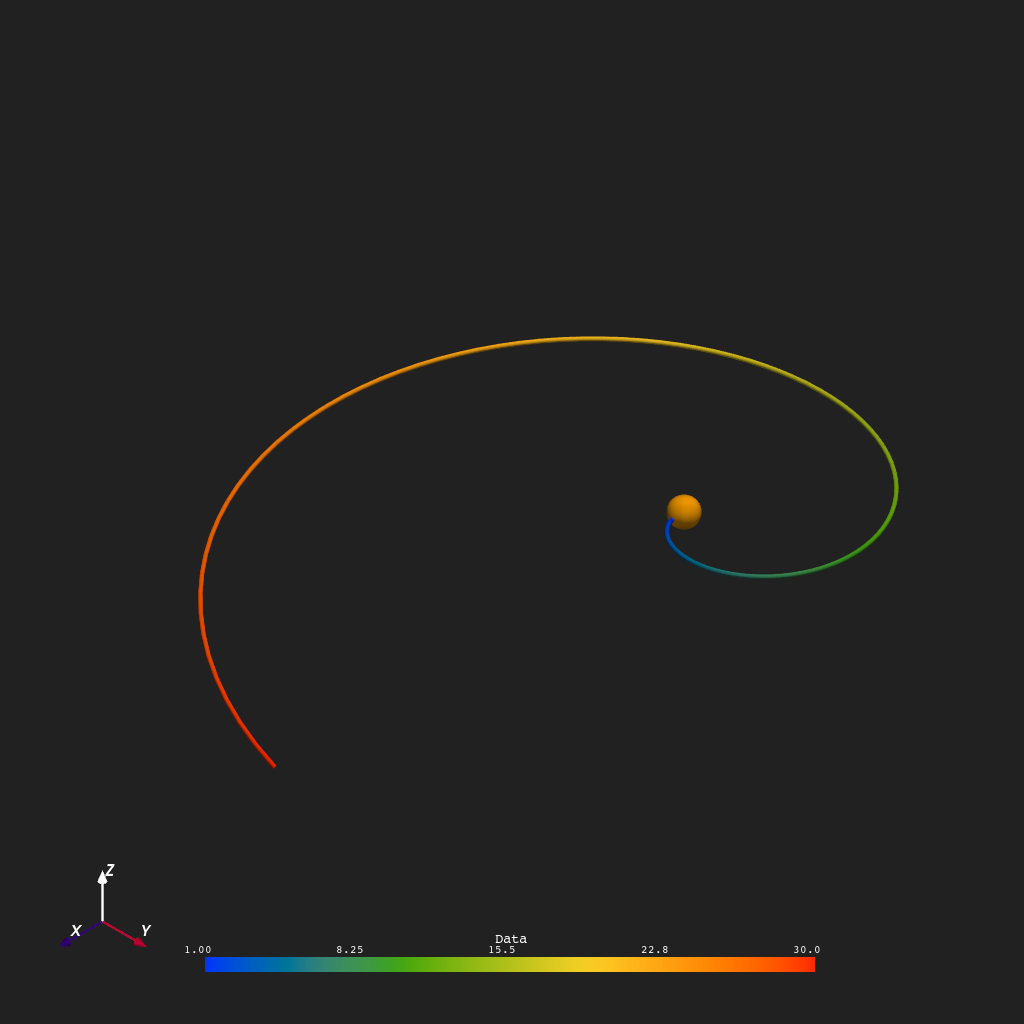

An equatorial Archimedean spiral tracing outward from \(r = 1\,R_\odot\) to \(r = 30\,R_\odot\) over one full longitude sweep (\(\phi \in [0, 2\pi]\)), colored by radial distance.

>>> from pyvisual import Plot3d
>>> import numpy as np
>>>
>>> r = np.linspace(1, 30, 100)
>>> t = np.repeat(np.pi/2, 100)
>>> p = np.linspace(0, 2*np.pi, 100)
>>>
>>> plotter = Plot3d()
>>> plotter.show_axes()
>>> plotter.add_sun()
>>> plotter.add_spline(r, t, p, r, line_width=5)
>>> plotter.show()

Static Scene

Interactive Scene
